1.前言 本实验中我将使用Verilog HDL语言设计一个31条指令单周期的CPU设计，并完成前仿真、后仿真和下板调试运行。设计CPU是一项繁杂的任务，在此过程中，要明确每一步设计流程，才能减少Debug的时间（改bug怎的很费时间），提高效率。

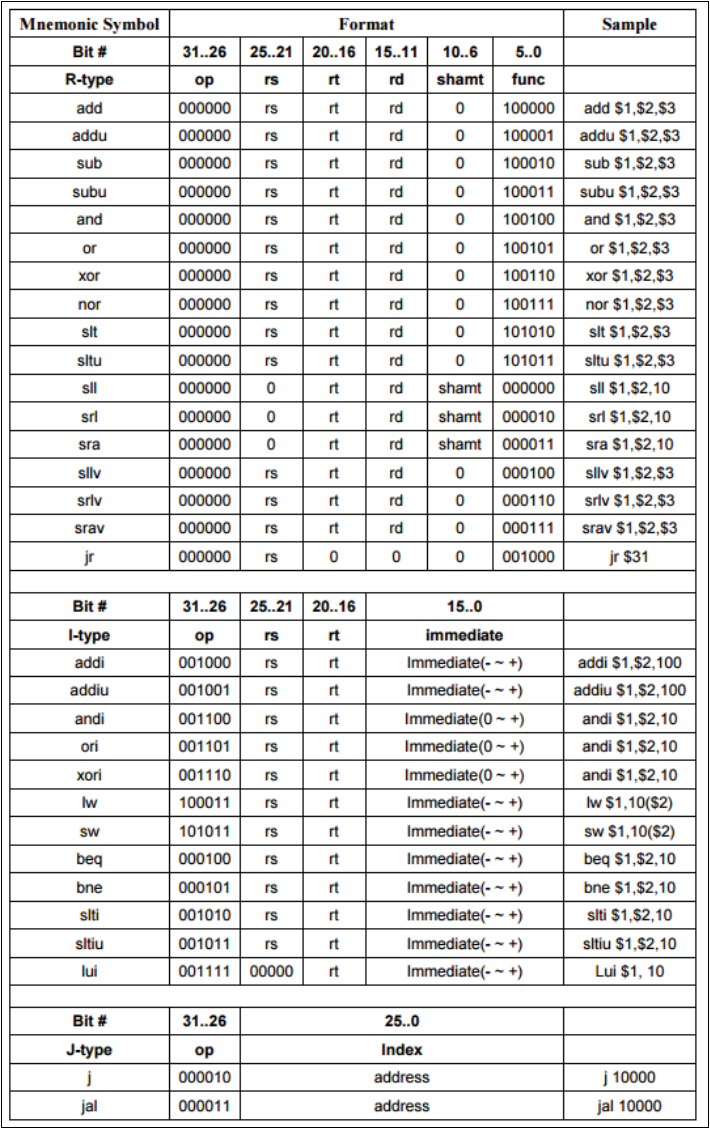

2.指令表 31条指令表如下：
R-type:
I-type:
J-type:

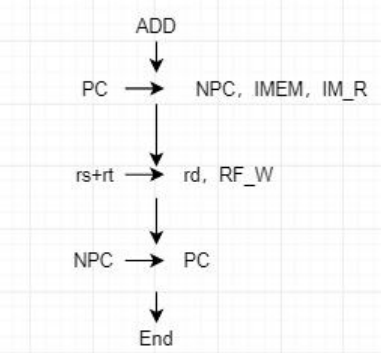

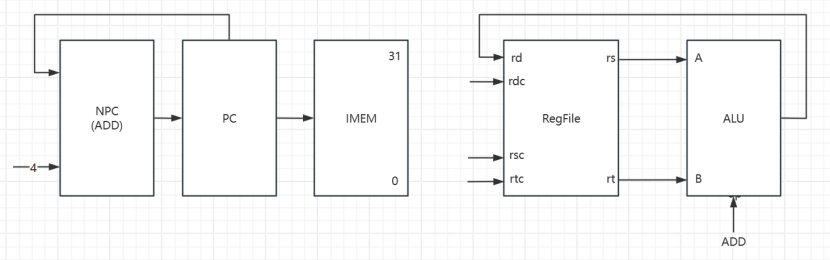

3.数据通路图 R-type 1.ADD
数据通路图：

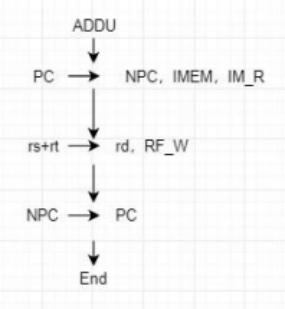

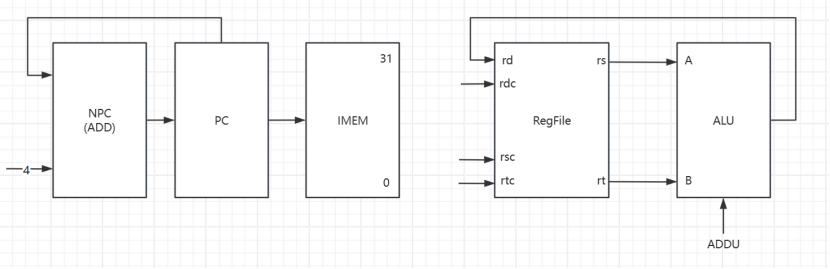

2.ADDU
数据通路图：

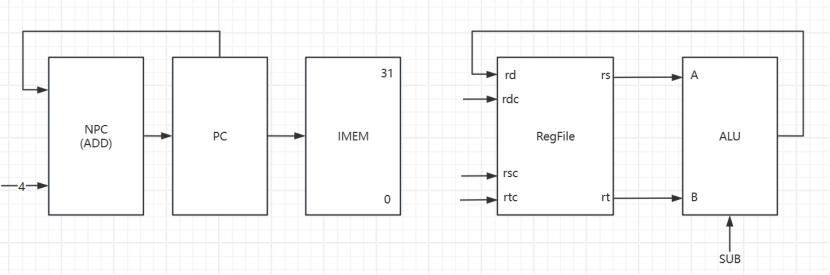

3.SUB
数据通路图：

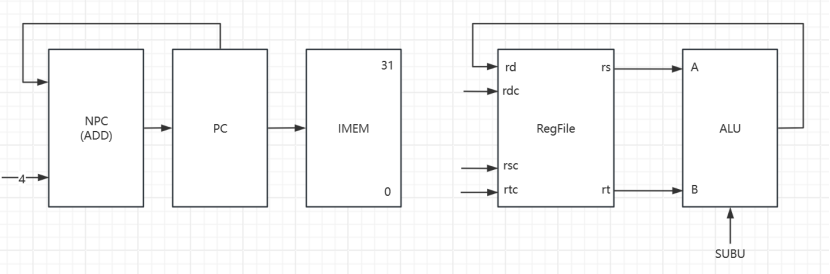

4.SUBU
数据通路图：

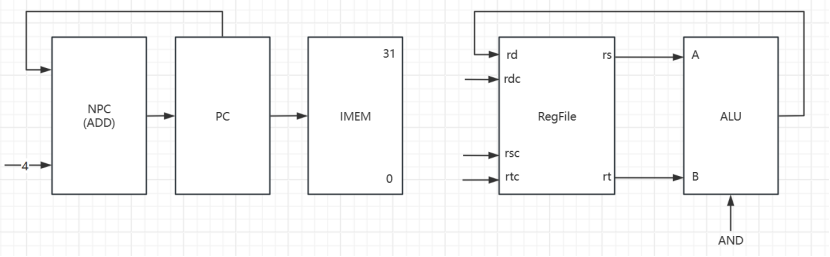

5.AND
数据通路图：

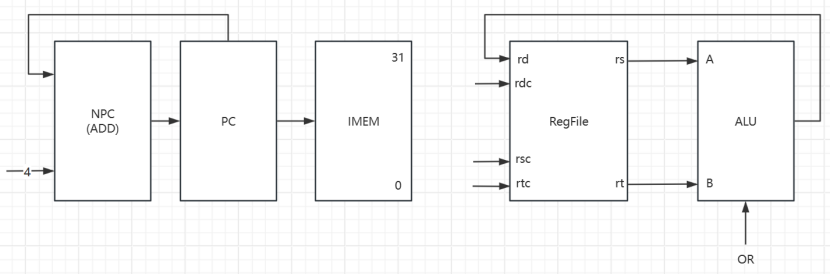

数据通路图：

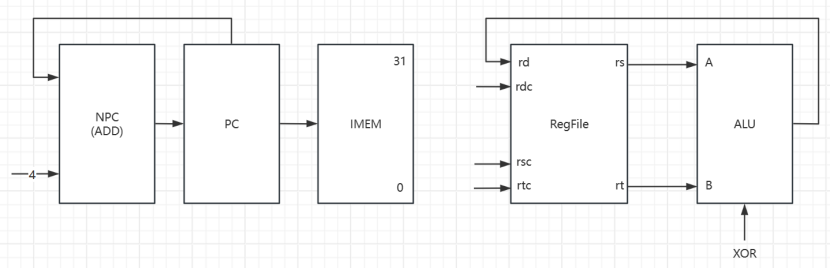

7.XOR
数据通路图：

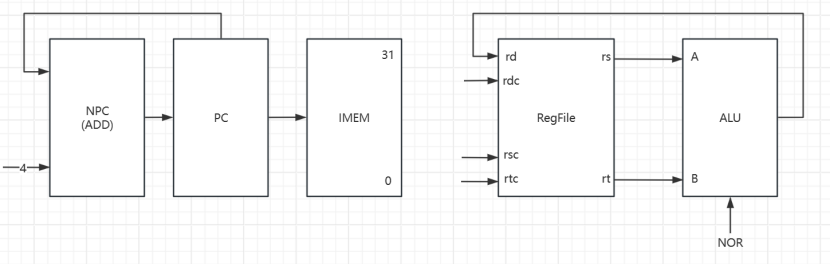

8.NOR
数据通路图：

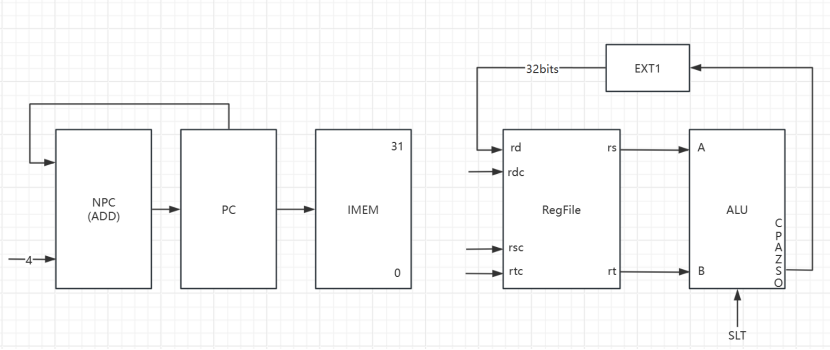

9.SLT(set less than)
数据通路图：

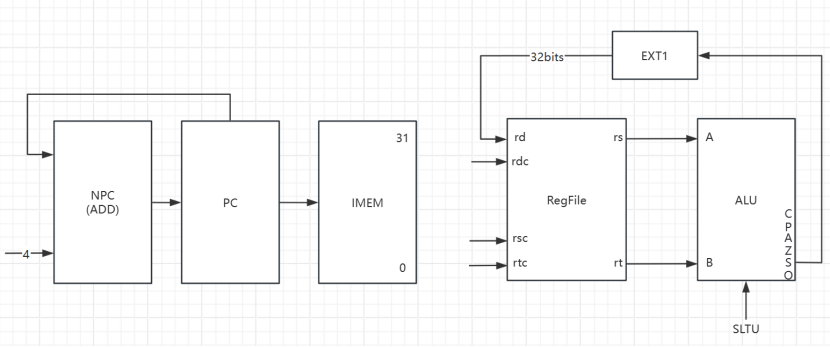

10.SLTU
数据通路图：

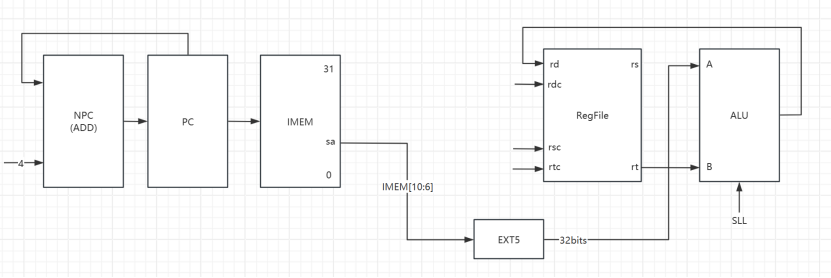

11.SLL(shift left logical)
数据通路图：

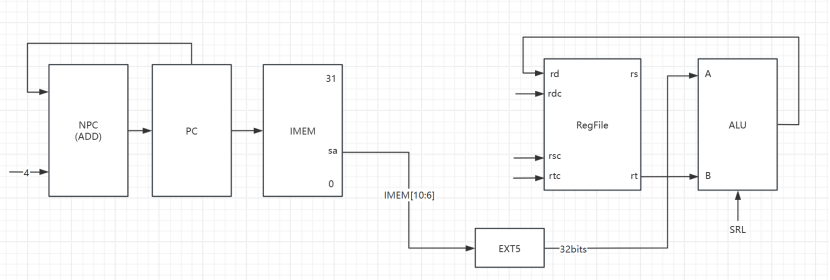

12.SRL(shift right logical)
数据通路图：

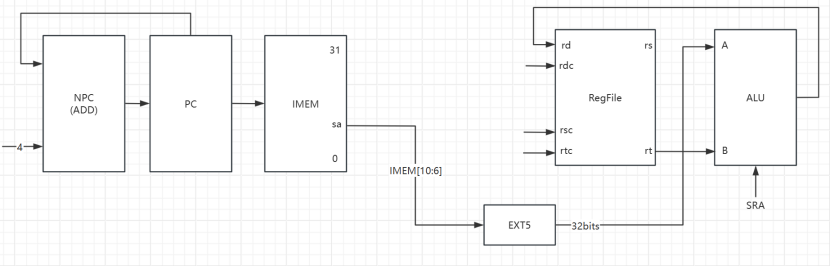

13.SRA(shift right arithmetic)
数据通路图：

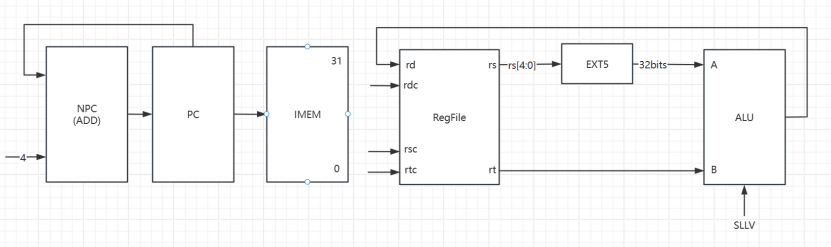

14.SLLV(shift left logic variable)
数据通路图：

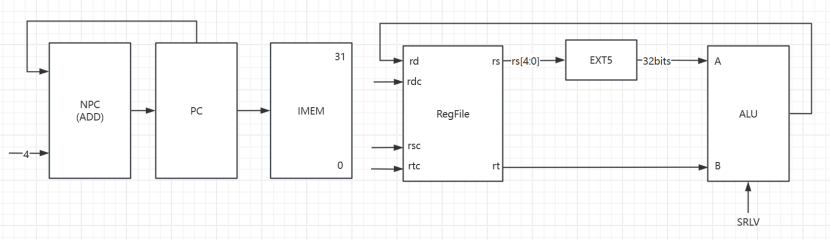

15.SRLV(shift right logic variable)
数据通路图：

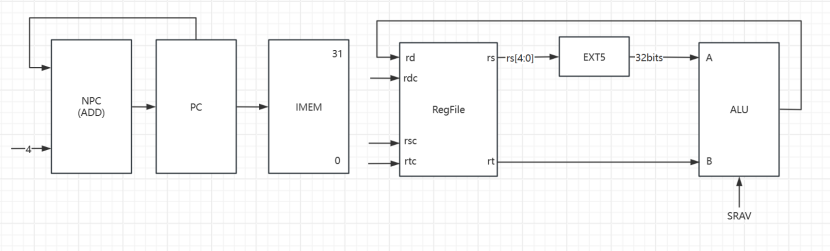

16.SRAV(shift right arithmetic variable)
数据通路图：

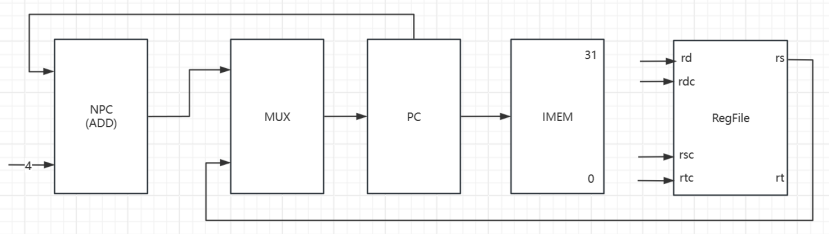

17.JR(jump register)
数据通路图：

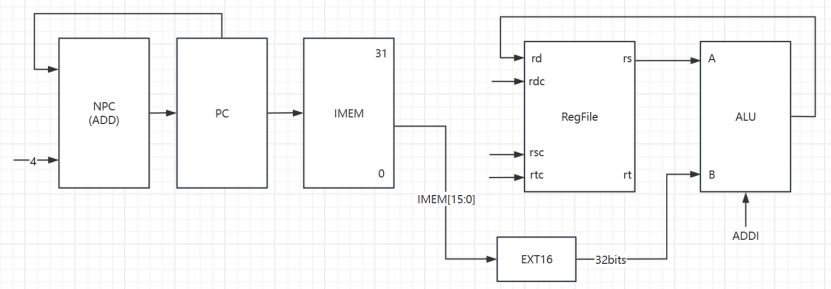

I-type 18.ADDI
数据通路图：

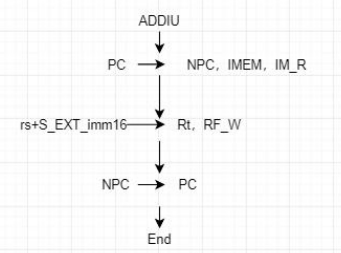

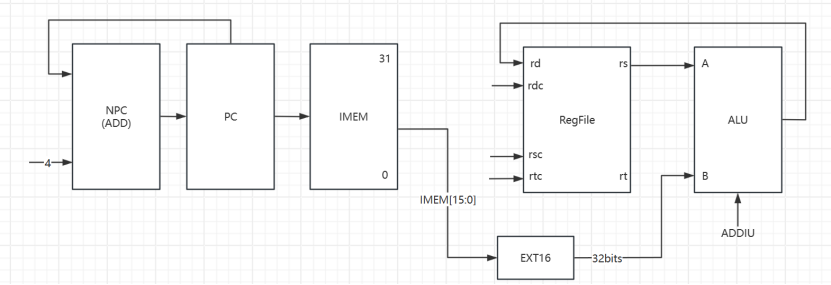

19.ADDIU
数据通路图：

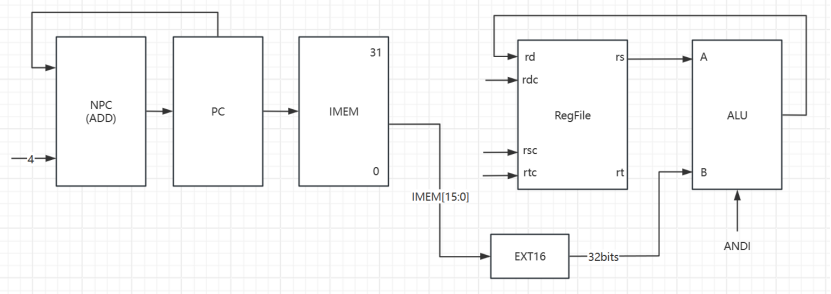

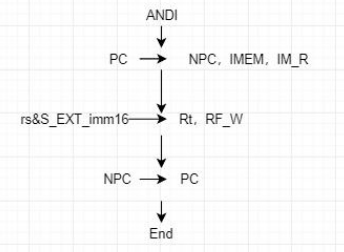

20.ANDI
数据通路图：

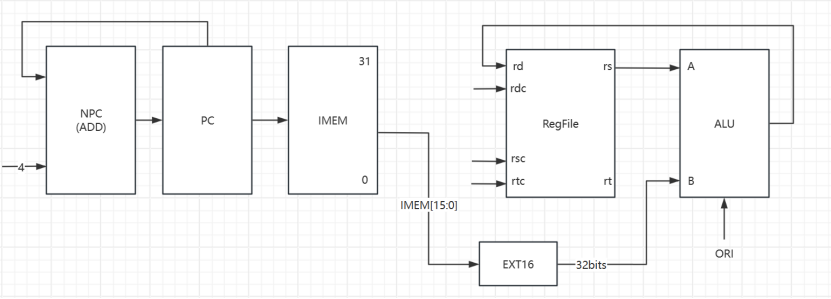

21.ORI
数据通路图：

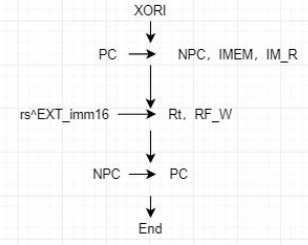

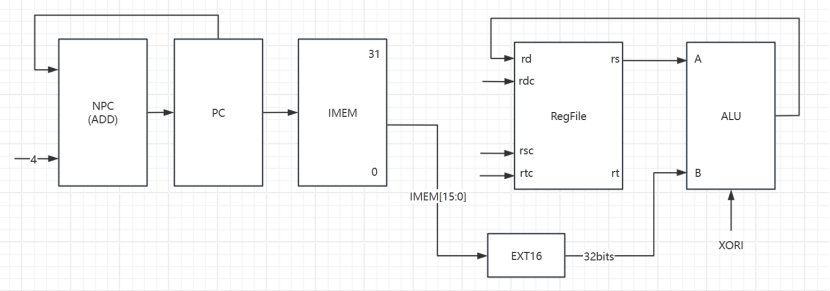

22.XORI
数据通路图：

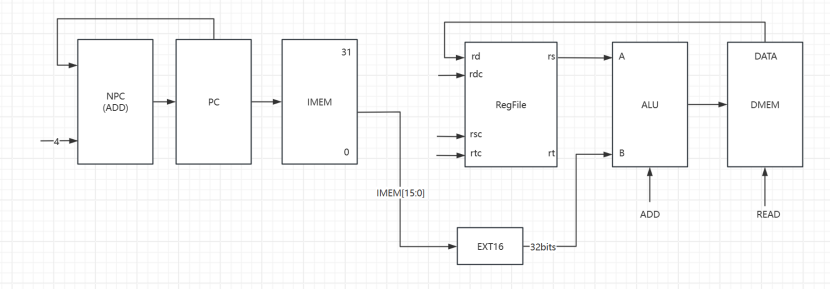

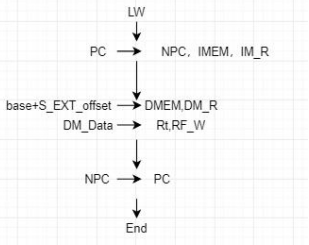

23.LW(Load Word)
数据通路图：

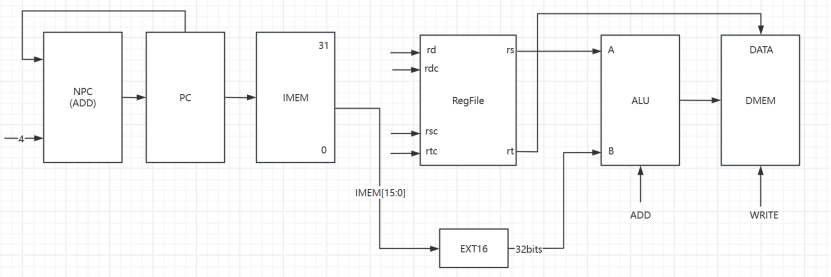

24.SW(Store Word)
数据通路图：

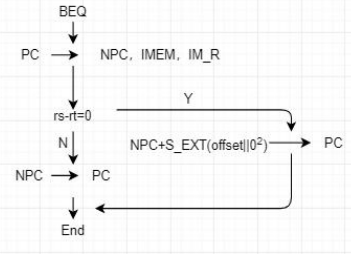

25.BEQ(Branch if Equal)
数据通路图：

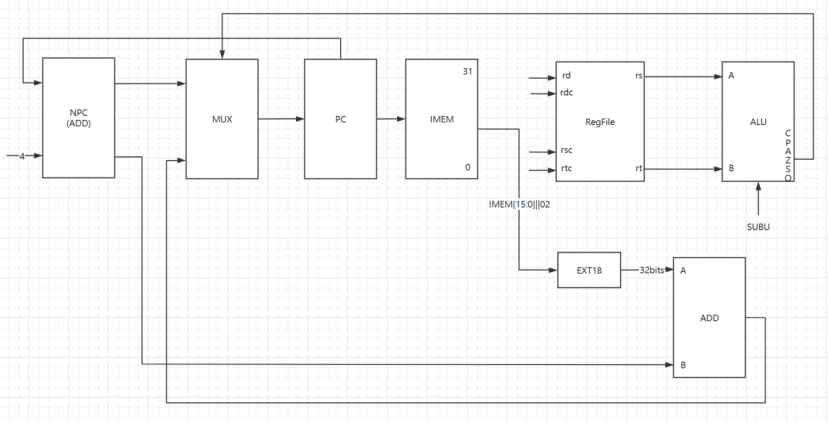

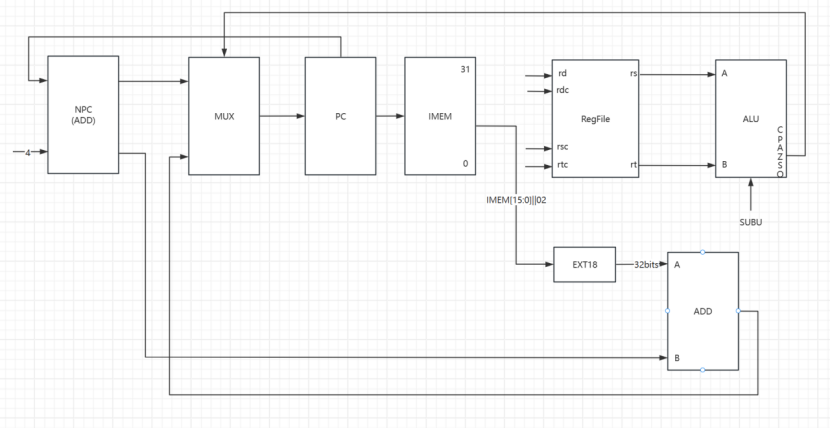

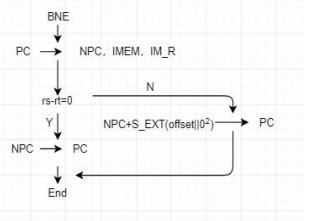

26.BNE(Branch if not Equal)
数据通路图：

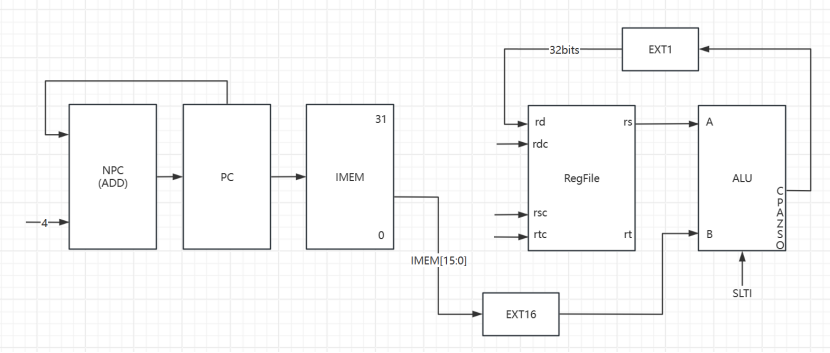

27.SLTI(Set on Less Than Immediate)
数据通路图：

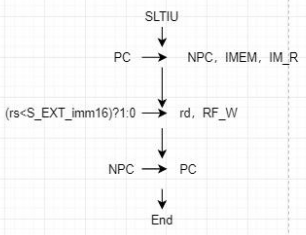

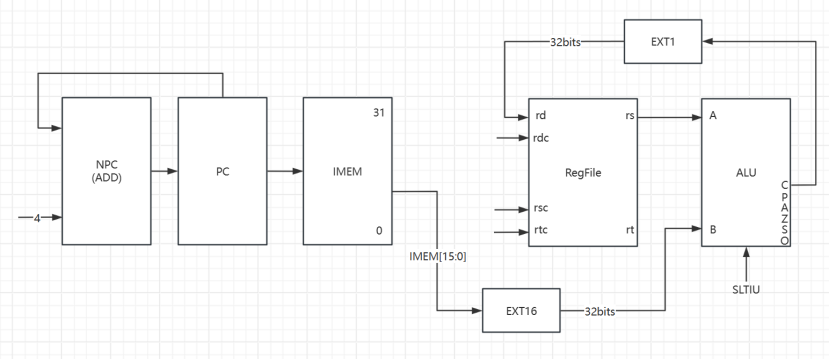

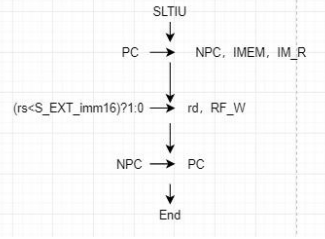

28.SLTIU
数据通路图：

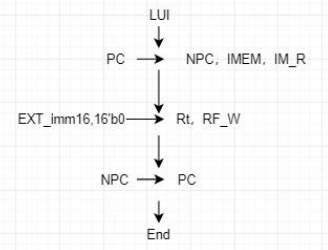

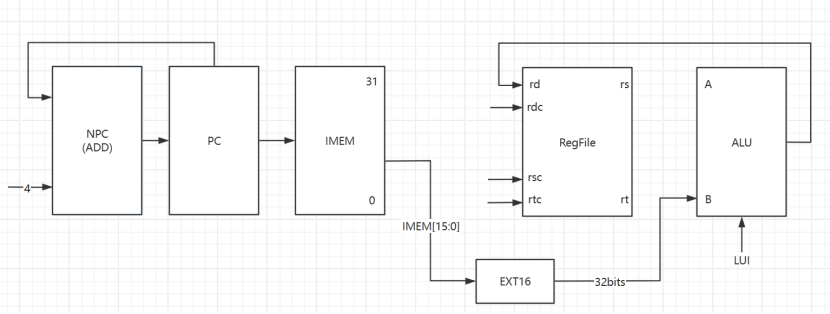

29.LUI(Load unsigned Immediate)
数据通路图：

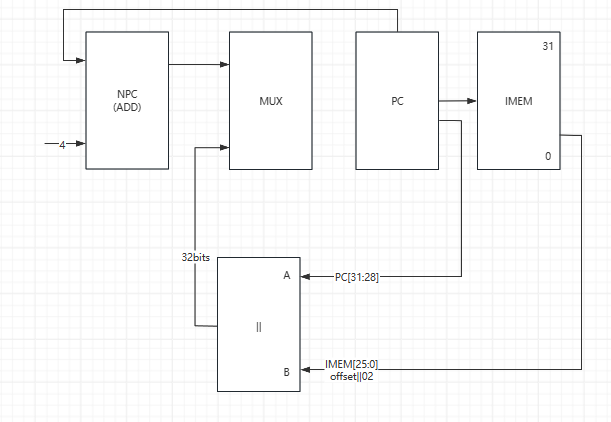

J-type 30.J(Jump)
数据通路图：

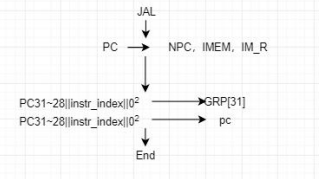

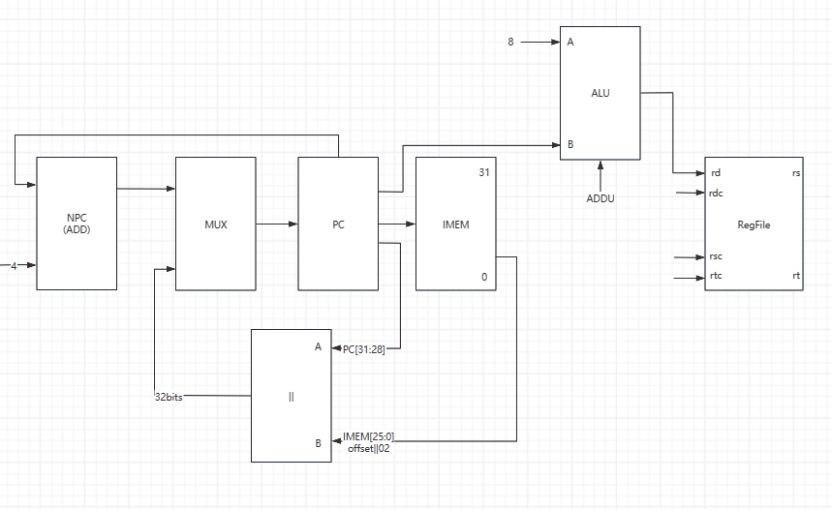

31.JAL(Jump)
数据通路图：

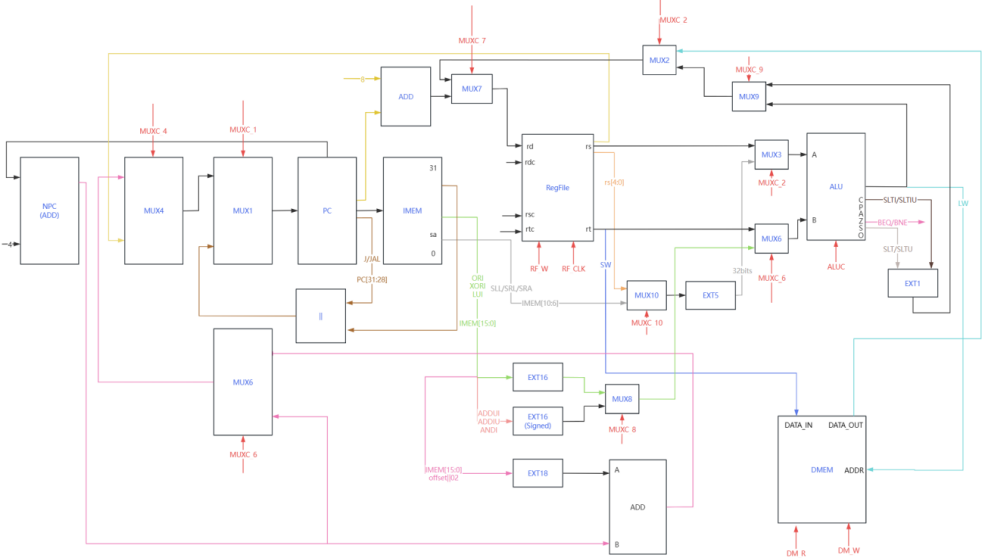

4.数据通路总图 接下来，将上述31条指令的数据通路图合在一起，形成数据通路总图
注意，在绘制数据通路总图时，要按照指令顺序依次画，最好同类型指令用同样的颜色标识，方便后期查错。

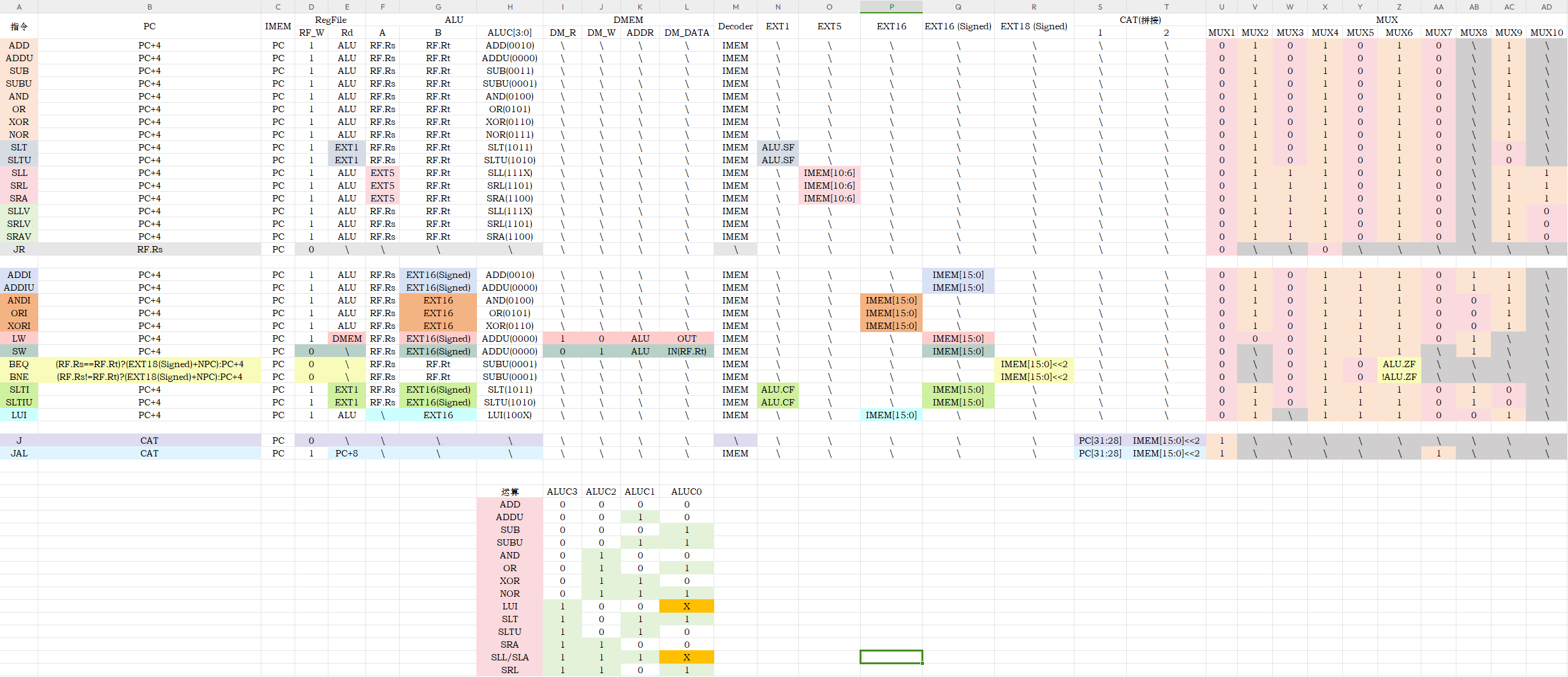

5.控制部件设计 将每条指令对应的所有控制信号列出，有了数据通路图，指令表就非常好写了。我们需要做的是在表中列出每一条指令和图中涉及到的所有操作信号，根据你列出的
6.代码编写 控制器Controler 用于控制运行指令时每个元件的状态。
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 `timescale 1ns / 1ps module Controler( input add_flag, input addu_flag, input sub_flag, input subu_flag, input and_flag, input or_flag, input xor_flag, input nor_flag, input slt_flag, input sltu_flag, input sll_flag, input srl_flag, input sra_flag, input sllv_flag, input srlv_flag, input srav_flag, input jr_flag, input addi_flag, input addiu_flag, input andi_flag, input ori_flag, input xori_flag, input lw_flag, input sw_flag, input beq_flag, input bne_flag, input slti_flag, input sltiu_flag, input lui_flag, input j_flag, input jal_flag, input zero, output reg_w, output [3 :0 ] aluc, output dm_r, output dm_w, output [4 :0 ] ext_ena, output cat_ena, output [10 :0 ] mux assign reg_w = (!jr_flag && !sw_flag && !beq_flag && !bne_flag && !j_flag) ? 1'b1 : 1'b0 ;assign aluc[3 ] = (slt_flag || sltu_flag || sllv_flag || srlv_flag ||1'b1 : 1'b0 ;assign aluc[2 ] = (and_flag || or_flag || xor_flag || nor_flag ||1'b1 : 1'b0 ;assign aluc[1 ] = (add_flag || sub_flag || xor_flag || nor_flag ||1'b1 : 1'b0 ;assign aluc[0 ] = (sub_flag || subu_flag || or_flag || nor_flag ||1'b1 : 1'b0 ;assign dm_r = lw_flag ? 1'b1 : 1'b0 ;assign dm_w = sw_flag ? 1'b1 : 1'b0 ;assign ext_ena[4 ] = (beq_flag || bne_flag) ? 1'b1 : 1'b0 ; assign ext_ena[3 ] = (addi_flag || addiu_flag || lw_flag || sw_flag ||1'b1 : 1'b0 ; assign ext_ena[2 ] = (andi_flag || ori_flag || xori_flag || lui_flag) ? 1'b1 : 1'b0 ; assign ext_ena[1 ] = (sll_flag || srl_flag || sra_flag) ? 1'b1 : 1'b0 ; assign ext_ena[0 ] = (slt_flag || sltu_flag || slti_flag || sltiu_flag) ? 1'b1 : 1'b0 ; assign cat_ena = (j_flag || jal_flag) ? 1'b1 : 1'b0 ;assign mux[10 ]= (sll_flag || srl_flag || sra_flag) ? 1'b1 : 1'b0 ;assign mux[9 ] = (add_flag || addu_flag || sub_flag || subu_flag ||1'b1 : 1'b0 ;assign mux[8 ] = (addi_flag || addiu_flag || lw_flag || sw_flag ||1'b1 : 1'b0 ;assign mux[7 ] = jal_flag ? 1'b1 : 1'b0 ;assign mux[6 ] = beq_flag ? ~zero : (bne_flag ? zero : 1'b1 );assign mux[5 ] = (addi_flag || addiu_flag || andi_flag || ori_flag ||1'b1 : 1'b0 ;assign mux[4 ] = (!jr_flag && !j_flag && !jal_flag) ? 1'b1 : 1'b0 ;assign mux[3 ] = (sll_flag || srl_flag || sra_flag || sllv_flag || srlv_flag || srav_flag) ? 1'b1 : 1'b0 ;assign mux[2 ] = !lw_flag ? 1'b1 : 1'b0 ;assign mux[1 ] = (j_flag || jal_flag) ? 1'b1 : 1'b0 ;endmodule
译码器Decoder 将指令码转化为控制信号输出。
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 `timescale 1ns / 1ps module Decoder( input [31 :0 ] instr_in, output add_flag, output addu_flag, output sub_flag, output subu_flag, output and_flag, output or_flag, output xor_flag, output nor_flag, output slt_flag, output sltu_flag, output sll_flag, output srl_flag, output sra_flag, output sllv_flag, output srlv_flag, output srav_flag, output jr_flag, output addi_flag, output addiu_flag, output andi_flag, output ori_flag, output xori_flag, output lw_flag, output sw_flag, output beq_flag, output bne_flag, output slti_flag, output sltiu_flag, output lui_flag, output j_flag, output jal_flag, output [4 :0 ] RsC, output [4 :0 ] RtC, output [4 :0 ] RdC, output [4 :0 ] shamt, output [15 :0 ] immediate, output [25 :0 ] address parameter ADD_OPE = 6'b100000 ;parameter ADDU_OPE = 6'b100001 ;parameter SUB_OPE = 6'b100010 ;parameter SUBU_OPE = 6'b100011 ;parameter AND_OPE = 6'b100100 ;parameter OR_OPE = 6'b100101 ;parameter XOR_OPE = 6'b100110 ;parameter NOR_OPE = 6'b100111 ;parameter SLT_OPE = 6'b101010 ;parameter SLTU_OPE = 6'b101011 ;parameter SLL_OPE = 6'b000000 ;parameter SRL_OPE = 6'b000010 ;parameter SRA_OPE = 6'b000011 ;parameter SLLV_OPE = 6'b000100 ;parameter SRLV_OPE = 6'b000110 ;parameter SRAV_OPE = 6'b000111 ;parameter JR_OPE = 6'b001000 ;parameter ADDI_OPE = 6'b001000 ;parameter ADDIU_OPE = 6'b001001 ;parameter ANDI_OPE = 6'b001100 ;parameter ORI_OPE = 6'b001101 ;parameter XORI_OPE = 6'b001110 ;parameter LW_OPE = 6'b100011 ;parameter SW_OPE = 6'b101011 ;parameter BEQ_OPE = 6'b000100 ;parameter BNE_OPE = 6'b000101 ;parameter SLTI_OPE = 6'b001010 ;parameter SLTIU_OPE = 6'b001011 ;parameter LUI_OPE = 6'b001111 ;parameter J_OPE = 6'b000010 ;parameter JAL_OPE = 6'b000011 ;assign add_flag = ((instr_in[31 :26 ] == 6'h0 ) && (instr_in[5 :0 ] == ADD_OPE )) ? 1'b1 : 1'b0 ;assign addu_flag = ((instr_in[31 :26 ] == 6'h0 ) && (instr_in[5 :0 ] == ADDU_OPE)) ? 1'b1 : 1'b0 ;assign sub_flag = ((instr_in[31 :26 ] == 6'h0 ) && (instr_in[5 :0 ] == SUB_OPE )) ? 1'b1 : 1'b0 ;assign subu_flag = ((instr_in[31 :26 ] == 6'h0 ) && (instr_in[5 :0 ] == SUBU_OPE)) ? 1'b1 : 1'b0 ;assign and_flag = ((instr_in[31 :26 ] == 6'h0 ) && (instr_in[5 :0 ] == AND_OPE )) ? 1'b1 : 1'b0 ;assign or_flag = ((instr_in[31 :26 ] == 6'h0 ) && (instr_in[5 :0 ] == OR_OPE )) ? 1'b1 : 1'b0 ;assign xor_flag = ((instr_in[31 :26 ] == 6'h0 ) && (instr_in[5 :0 ] == XOR_OPE )) ? 1'b1 : 1'b0 ;assign nor_flag = ((instr_in[31 :26 ] == 6'h0 ) && (instr_in[5 :0 ] == NOR_OPE )) ? 1'b1 : 1'b0 ;assign slt_flag = ((instr_in[31 :26 ] == 6'h0 ) && (instr_in[5 :0 ] == SLT_OPE )) ? 1'b1 : 1'b0 ;assign sltu_flag = ((instr_in[31 :26 ] == 6'h0 ) && (instr_in[5 :0 ] == SLTU_OPE)) ? 1'b1 : 1'b0 ;assign sll_flag = ((instr_in[31 :26 ] == 6'h0 ) && (instr_in[5 :0 ] == SLL_OPE )) ? 1'b1 : 1'b0 ;assign srl_flag = ((instr_in[31 :26 ] == 6'h0 ) && (instr_in[5 :0 ] == SRL_OPE )) ? 1'b1 : 1'b0 ;assign sra_flag = ((instr_in[31 :26 ] == 6'h0 ) && (instr_in[5 :0 ] == SRA_OPE )) ? 1'b1 : 1'b0 ;assign sllv_flag = ((instr_in[31 :26 ] == 6'h0 ) && (instr_in[5 :0 ] == SLLV_OPE)) ? 1'b1 : 1'b0 ;assign srlv_flag = ((instr_in[31 :26 ] == 6'h0 ) && (instr_in[5 :0 ] == SRLV_OPE)) ? 1'b1 : 1'b0 ;assign srav_flag = ((instr_in[31 :26 ] == 6'h0 ) && (instr_in[5 :0 ] == SRAV_OPE)) ? 1'b1 : 1'b0 ;assign jr_flag = ((instr_in[31 :26 ] == 6'h0 ) && (instr_in[5 :0 ] == JR_OPE )) ? 1'b1 : 1'b0 ;assign addi_flag = (instr_in[31 :26 ] == ADDI_OPE ) ? 1'b1 : 1'b0 ;assign addiu_flag = (instr_in[31 :26 ] == ADDIU_OPE) ? 1'b1 : 1'b0 ;assign andi_flag = (instr_in[31 :26 ] == ANDI_OPE ) ? 1'b1 : 1'b0 ;assign ori_flag = (instr_in[31 :26 ] == ORI_OPE ) ? 1'b1 : 1'b0 ;assign xori_flag = (instr_in[31 :26 ] == XORI_OPE ) ? 1'b1 : 1'b0 ;assign lw_flag = (instr_in[31 :26 ] == LW_OPE ) ? 1'b1 : 1'b0 ;assign sw_flag = (instr_in[31 :26 ] == SW_OPE ) ? 1'b1 : 1'b0 ;assign beq_flag = (instr_in[31 :26 ] == BEQ_OPE ) ? 1'b1 : 1'b0 ;assign bne_flag = (instr_in[31 :26 ] == BNE_OPE ) ? 1'b1 : 1'b0 ;assign slti_flag = (instr_in[31 :26 ] == SLTI_OPE ) ? 1'b1 : 1'b0 ;assign sltiu_flag = (instr_in[31 :26 ] == SLTIU_OPE) ? 1'b1 : 1'b0 ;assign lui_flag = (instr_in[31 :26 ] == LUI_OPE ) ? 1'b1 : 1'b0 ;assign j_flag = (instr_in[31 :26 ] == J_OPE ) ? 1'b1 : 1'b0 ;assign jal_flag = (instr_in[31 :26 ] == JAL_OPE ) ? 1'b1 : 1'b0 ;assign RsC = (add_flag || addu_flag || sub_flag || subu_flag ||25 :21 ] : 5'hz ;assign RtC = (add_flag || addu_flag || sub_flag || subu_flag ||20 :16 ] : 5'hz ;assign RdC = (add_flag || addu_flag || sub_flag || subu_flag ||15 :11 ] : ((20 :16 ] : (jal_flag ? 5'd31 : 5'hz ));assign shamt = (sll_flag || srl_flag || sra_flag) ? instr_in[10 :6 ] : 5'hz ; assign immediate = (addi_flag || addiu_flag || andi_flag || ori_flag || 15 :0 ] : 16'hz ;assign address = (j_flag || jal_flag) ? instr_in[25 :0 ] : 26'hz ; endmodule
算术逻辑单元ALU 完成各种算术和逻辑运算
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 `timescale 1ns / 1ps module ALU(input [3 :0 ] ALU_C, input [31 :0 ] A, input [31 :0 ] B, output [31 :0 ] OUT, output CF,output ZF,output SF,output OFparameter ADD = 4'b0000 ;parameter ADDU = 4'b0010 ;parameter SUB = 4'b0001 ;parameter SUBU = 4'b0011 ;parameter AND = 4'b0100 ;parameter OR = 4'b0101 ;parameter XOR = 4'b0110 ;parameter NOR = 4'b0111 ;parameter LUI = 4'b100x ;parameter SLT = 4'b1011 ;parameter SLTU = 4'b1010 ;parameter SRA = 4'b1100 ;parameter SLL = 4'b111x ;parameter SLA = 4'b111x ;parameter SRL = 4'b1101 ;reg [32 :0 ] result; wire signed [31 :0 ] s_A,s_B; assign s_A = A;assign s_B = B;always @(*)begin case (ALU_C)begin result <= s_A + s_B; end begin result <= A + B; end begin result <= s_A - s_B; end begin result <= A - B; end begin result <= A & B; end begin result <= A | B; end begin result <= A ^ B; end begin result <= ~(A | B); end begin result <= { B[15 :0 ] , 16'b0 }; end begin result <= s_A - s_B; end begin result <= A - B; end begin result <= s_B >>> s_A; end begin result <= B << A; end begin result <= B >> A; end endcase end assign OUT = result[31 :0 ]; assign CF = result[32 ]; assign ZF = (result == 32'b0 ) ? 1 : 0 ; assign SF = (ALU_C == SLT ? (s_A < s_B):1'b0 ));assign OF = result[32 ]; endmodule
寄存器堆Regfile 32位的寄存器堆
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 `timescale 1ns / 1ps module regfile( input reg_clk, input reg_ena, input rst_n, input reg_w, input [4 :0 ] RdC, input [4 :0 ] RtC, input [4 :0 ] RsC, input [31 :0 ] Rd_data_in, output [31 :0 ] Rs_data_out,output [31 :0 ] Rt_data_out reg [31 :0 ] array_reg [31 :0 ];assign Rs_data_out = reg_ena ? array_reg[RsC] : 32'bz ;assign Rt_data_out = reg_ena ? array_reg[RtC] : 32'bz ;always @(negedge reg_clk or posedge rst_n)begin if (rst_n && reg_ena)begin 0 ] <= 32'h0 ;1 ] <= 32'h0 ;2 ] <= 32'h0 ;3 ] <= 32'h0 ;4 ] <= 32'h0 ;5 ] <= 32'h0 ;6 ] <= 32'h0 ;7 ] <= 32'h0 ;8 ] <= 32'h0 ;9 ] <= 32'h0 ;10 ] <= 32'h0 ;11 ] <= 32'h0 ;12 ] <= 32'h0 ;13 ] <= 32'h0 ;14 ] <= 32'h0 ;15 ] <= 32'h0 ;16 ] <= 32'h0 ;17 ] <= 32'h0 ;18 ] <= 32'h0 ;19 ] <= 32'h0 ;20 ] <= 32'h0 ;21 ] <= 32'h0 ;22 ] <= 32'h0 ;23 ] <= 32'h0 ;24 ] <= 32'h0 ;25 ] <= 32'h0 ;26 ] <= 32'h0 ;27 ] <= 32'h0 ;28 ] <= 32'h0 ;29 ] <= 32'h0 ;30 ] <= 32'h0 ;31 ] <= 32'h0 ;end else if (reg_ena && reg_w && (RdC != 5'h0 ))end endmodule
程序计数器PC 存储指令地址
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 `timescale 1ns / 1ps module PC( input pc_clk, input pc_ena, input rst_n, input [31 :0 ] pc_addr_in, output [31 :0 ] pc_addr_out reg [31 :0 ] pc_reg = 32'h00400000 ;assign pc_addr_out = pc_ena ? pc_reg : 32'hz ;always @(negedge pc_clk or posedge rst_n)begin if (rst_n && pc_ena)begin 32'h00400000 ;end else if (pc_ena)begin end end endmodule
CPU 负责调用PC，Controller等模块
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 `timescale 1ns / 1ps module cpu(input clk, input ena, input rst_n, input [31 :0 ] instr_in, input [31 :0 ] dm_data, output dm_ena, output dm_w, output dm_r, output [31 :0 ] pc_out, output [31 :0 ] dm_addr, output [31 :0 ] dm_data_w wire add_flag, addu_flag, sub_flag, subu_flag, and_flag, or_flag, xor_flag, nor_flag,wire [4 :0 ] RsC; wire [4 :0 ] RtC; wire [4 :0 ] RdC; wire [4 :0 ] shamt; wire [15 :0 ] immediate; wire [25 :0 ] address; wire reg_w; wire [9 :0 ] mux; wire [4 :0 ] ext_ena; wire cat_ena; wire [31 :0 ] a, b; wire [3 :0 ] aluc; wire [31 :0 ] alu_data_out; wire zero, carry, negative, overflow; wire [31 :0 ] Rd_data_in; wire [31 :0 ] Rs_data_out; wire [31 :0 ] Rt_data_out; wire [31 :0 ] pc_addr_in; wire [31 :0 ] pc_addr_out; wire [31 :0 ] ext1_out;wire [31 :0 ] ext5_out;wire [31 :0 ] ext16_out;wire signed [31 :0 ] ext16_out_signed;wire signed [31 :0 ] ext18_out_signed;assign ext1_out = (slt_flag || sltu_flag) ? negative : (slti_flag || sltiu_flag) ? carry : 32'hz ;assign ext5_out = (sll_flag || srl_flag || sra_flag ||sllv_flag||srlv_flag||srav_flag) ? mux10_out : 32'hz ;assign ext16_out = (andi_flag || ori_flag || xori_flag || lui_flag) ? { 16'h0 , immediate[15 :0 ] } : 32'hz ;assign ext16_out_signed = (addi_flag || addiu_flag || lw_flag || sw_flag || slti_flag || sltiu_flag) ? { {16 {immediate[15 ]}} , immediate[15 :0 ] } : 32'hz ;assign ext18_out_signed = (beq_flag || bne_flag) ? {{14 {immediate[15 ]}}, immediate[15 :0 ], 2'b0 } : 32'hz ;wire [31 :0 ] cat_out;assign cat_out = cat_ena ? {pc_out[31 :28 ], address[25 :0 ], 2'h0 } : 32'hz ;wire [31 :0 ] npc;assign npc = pc_addr_out + 4 ;wire [31 :0 ] mux1_out;wire [31 :0 ] mux2_out;wire [31 :0 ] mux3_out;wire [31 :0 ] mux4_out;wire [31 :0 ] mux5_out;wire [31 :0 ] mux6_out;wire [31 :0 ] mux7_out;wire [31 :0 ] mux8_out;wire [31 :0 ] mux9_out;assign mux1_out = mux[1 ] ? cat_out : mux4_out;assign mux2_out = mux[2 ] ? mux9_out : dm_data;assign mux3_out = mux[3 ] ? ext5_out : Rs_data_out;assign mux4_out = mux[4 ] ? mux6_out : Rs_data_out;assign mux5_out = mux[5 ] ? mux8_out : Rt_data_out;assign mux6_out = mux[6 ] ? npc : ext18_out_signed + npc;assign mux7_out = mux[7 ] ? pc_addr_out + 4 : mux2_out;assign mux8_out = mux[8 ] ? ext16_out_signed : ext16_out;assign mux9_out = mux[9 ] ? alu_data_out : ext1_out;assign mux10_out= mux[10 ]? Rs_data_out[4 :0 ] : shamt;assign pc_addr_in = mux1_out;assign a = mux3_out;assign b = mux5_out;assign pc_out = pc_addr_out;assign dm_ena = (dm_r || dm_w) ? 1'b1 : 1'b0 ;assign dm_addr = alu_data_out;assign dm_data_w = Rt_data_out;assign Rd_data_in = mux7_out;.instr_in (instr_in), .add_flag (add_flag), .addu_flag (addu_flag), .sub_flag (sub_flag), .subu_flag (subu_flag), .and_flag (and_flag), .or_flag (or_flag), .xor_flag (xor_flag), .nor_flag (nor_flag), .slt_flag (slt_flag), .sltu_flag (sltu_flag), .sll_flag (sll_flag) , .srl_flag (srl_flag), .sra_flag (sra_flag), .sllv_flag (sllv_flag), .srlv_flag (srlv_flag), .srav_flag (srav_flag), .jr_flag (jr_flag), .addi_flag (addi_flag), .addiu_flag (addiu_flag), .andi_flag (andi_flag), .ori_flag (ori_flag), .xori_flag (xori_flag), .lw_flag (lw_flag), .sw_flag (sw_flag), .beq_flag (beq_flag), .bne_flag (bne_flag), .slti_flag (slti_flag), .sltiu_flag (sltiu_flag), .lui_flag (lui_flag), .j_flag (j_flag), .jal_flag (jal_flag), .RsC (RsC), .RtC (RtC), .RdC (RdC), .shamt (shamt), .immediate (immediate), .address (address) .add_flag (add_flag), .addu_flag (addu_flag), .sub_flag (sub_flag), .subu_flag (subu_flag), .and_flag (and_flag), .or_flag (or_flag), .xor_flag (xor_flag), .nor_flag (nor_flag), .slt_flag (slt_flag), .sltu_flag (sltu_flag), .sll_flag (sll_flag) , .srl_flag (srl_flag), .sra_flag (sra_flag), .sllv_flag (sllv_flag), .srlv_flag (srlv_flag), .srav_flag (srav_flag), .jr_flag (jr_flag), .addi_flag (addi_flag), .addiu_flag (addiu_flag), .andi_flag (andi_flag), .ori_flag (ori_flag), .xori_flag (xori_flag), .lw_flag (lw_flag), .sw_flag (sw_flag), .beq_flag (beq_flag), .bne_flag (bne_flag), .slti_flag (slti_flag), .sltiu_flag (sltiu_flag), .lui_flag (lui_flag), .j_flag (j_flag), .jal_flag (jal_flag), .zero (zero), .reg_w (reg_w), .aluc (aluc), .dm_r (dm_r), .dm_w (dm_w), .ext_ena (ext_ena), .cat_ena (cat_ena), .mux (mux) .A (a), .B (b), .ALU_C (aluc), .OUT (alu_data_out),.ZF (zero), .CF (carry), .SF (negative), .OF (overflow) .reg_clk (clk), .reg_ena (ena), .rst_n (rst_n), .reg_w (reg_w), .RdC (RdC), .RtC (RtC), .RsC (RsC), .Rd_data_in (Rd_data_in), .Rs_data_out (Rs_data_out), .Rt_data_out (Rt_data_out) .pc_clk (clk), .pc_ena (ena), .rst_n (rst_n), .pc_addr_in (pc_addr_in), .pc_addr_out (pc_addr_out) endmodule
数据存储器DMEM 字长为32bit的数据存储器
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 `timescale 1ns / 1ps module DMEM(input D_clk, input D_ena, input D_r, input D_w, input [10 :0 ] D_addr, input [31 :0 ] D_data_in, output [31 :0 ] D_data_outreg [31 :0 ] dmem [31 :0 ];assign D_data_out = (D_ena && D_r && !D_w) ? dmem[D_addr] : 32'bz ;always @(negedge D_clk)if (D_ena && D_w &&!D_r)endmodule
指令存储器IMEM 字长为32bit的指令存储器
1 2 3 4 5 6 7 8 9 10 11 12 `timescale 1ns / 1ps module IMEM(input [10 :0 ] I_addr_in,output [31 :0 ] I_instr_out.a (I_addr_in),.spo (I_instr_out)endmodule
数据流sccomp_dataflow 最顶层的文件，负责将指令存储器IMEM、数据存储器DMEM和CPU连接起来。
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 `timescale 1ns / 1ps module sccomp_dataflow(input clk_in, input reset, output [31 :0 ] inst, output [31 :0 ] pc wire [31 :0 ] pc_out; wire [31 :0 ] dm_addr_temp; wire [31 :0 ] im_addr_in; wire [31 :0 ] im_instr_out; assign im_addr_in = pc_out - 32'h00400000 ;wire dm_ena; wire dm_r, dm_w; wire [31 :0 ] dm_addr; wire [31 :0 ] dm_data_out; wire [31 :0 ] dm_data_w; assign dm_addr = (dm_addr_temp - 32'h10010000 )/4 ;assign pc = pc_out;assign inst = im_instr_out;.I_addr_in (im_addr_in[12 :2 ]), .I_instr_out (im_instr_out) .D_clk (clk_in), .D_ena (dm_ena), .D_r (dm_r), .D_w (dm_w), .D_addr (dm_addr[10 :0 ]), .D_data_in (dm_data_w), .D_data_out (dm_data_out) .clk (clk_in), .ena (1'b1 ), .rst_n (reset), .instr_in (im_instr_out), .dm_data (dm_data_out), .dm_ena (dm_ena), .dm_w (dm_w), .dm_r (dm_r), .pc_out (pc_out), .dm_addr (dm_addr_temp), .dm_data_w (dm_data_w) endmodule
注意：指令存储器的实现用到了IP核。

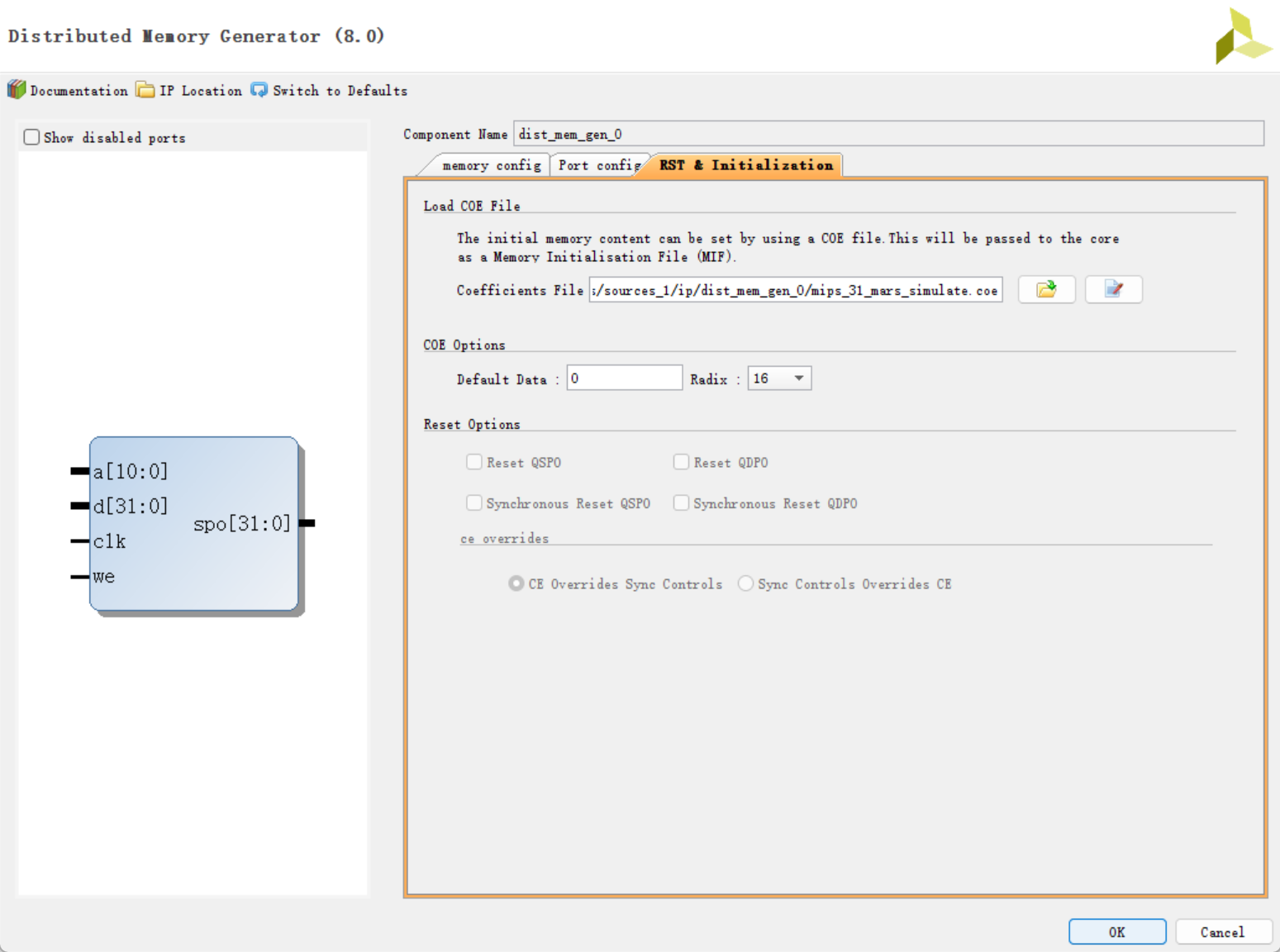

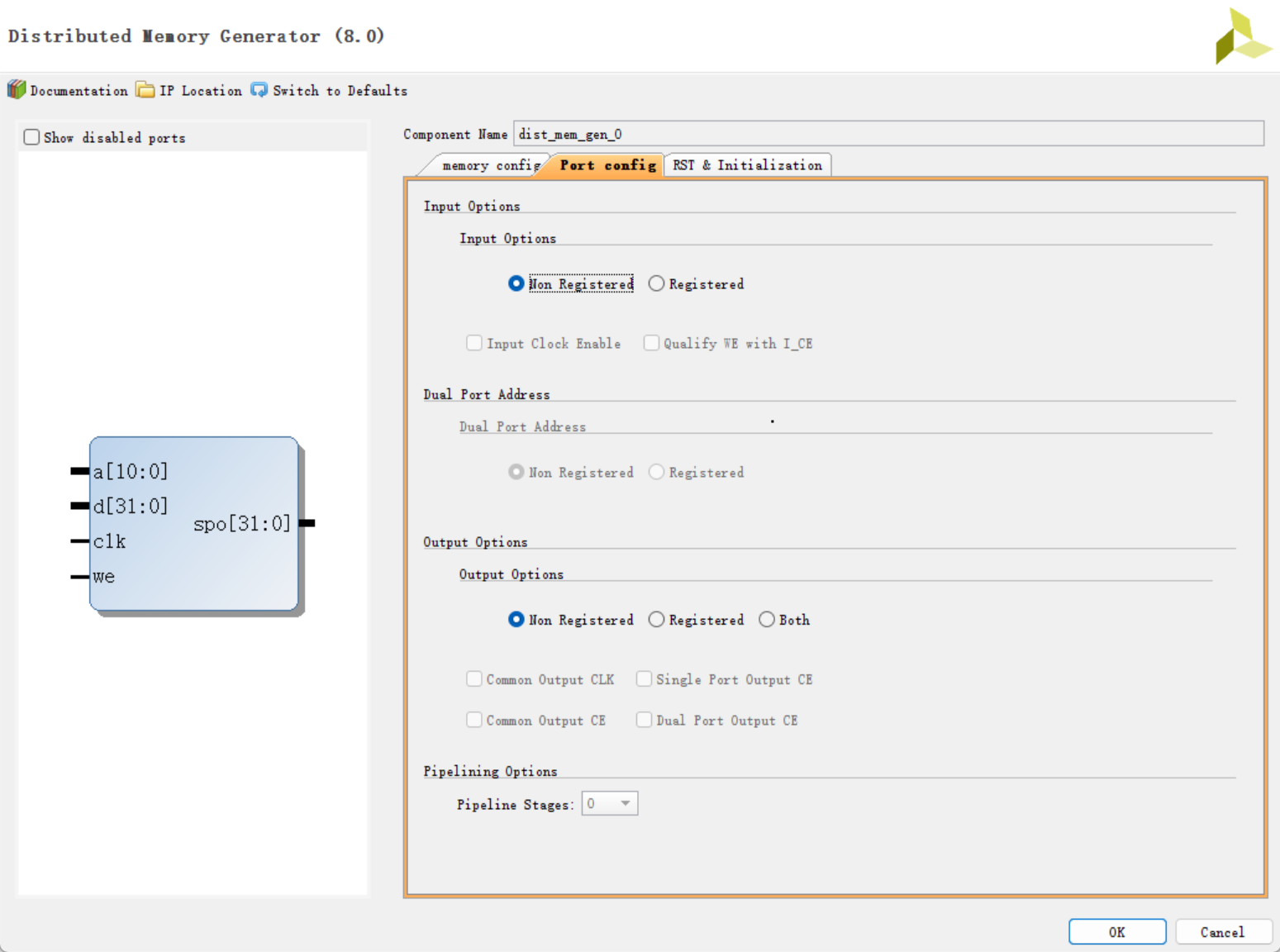

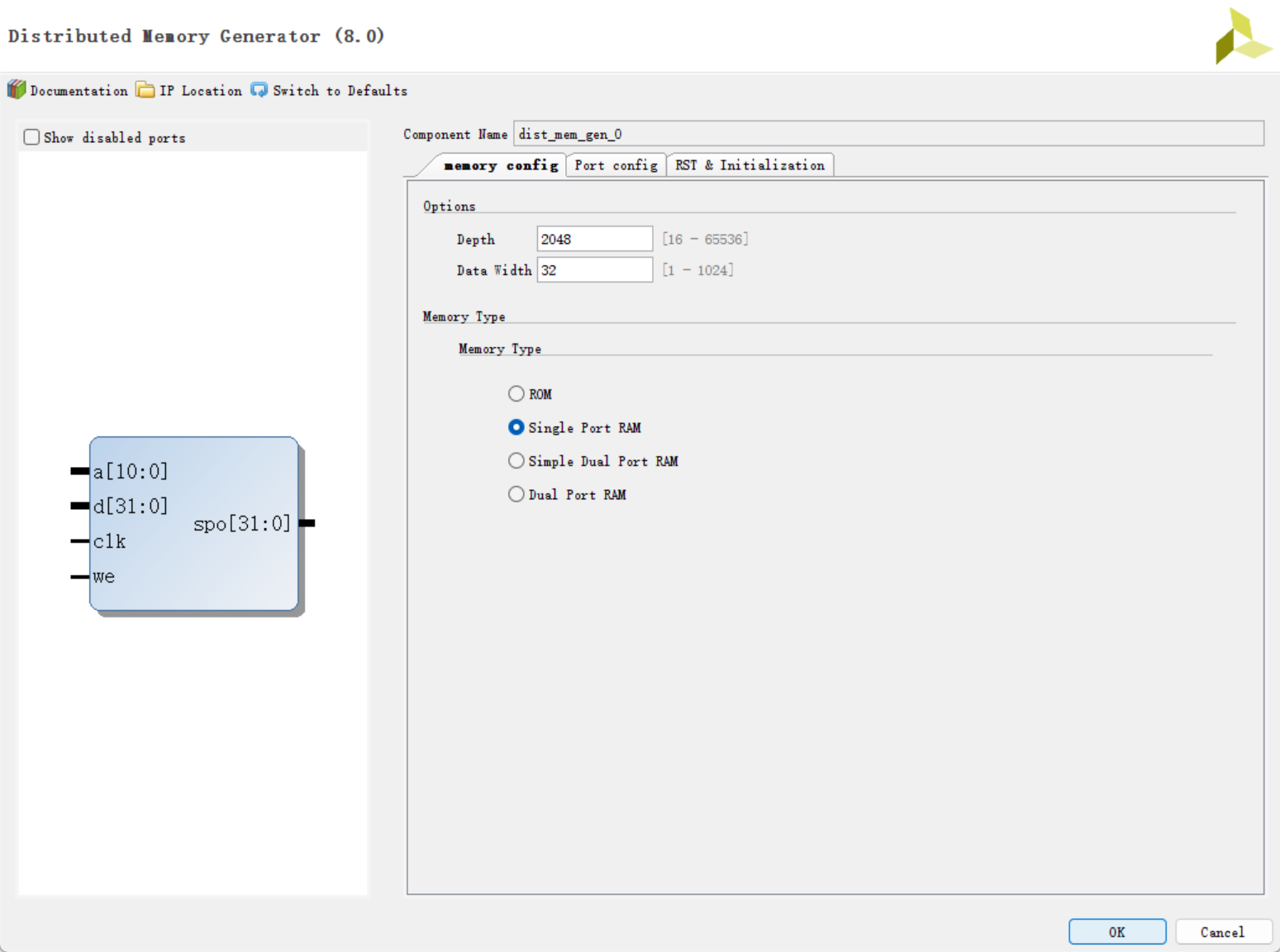

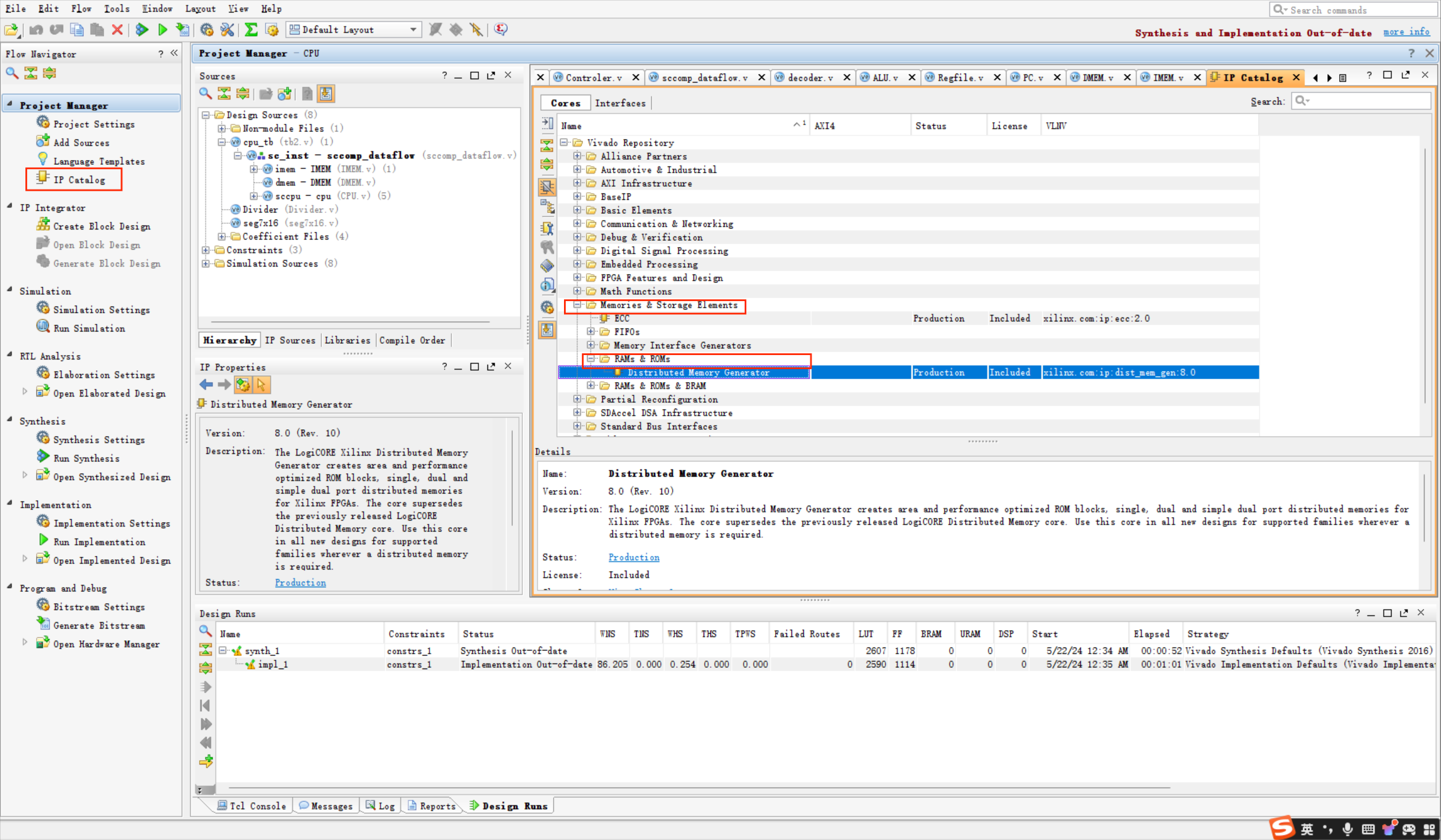

如何生成IP核：

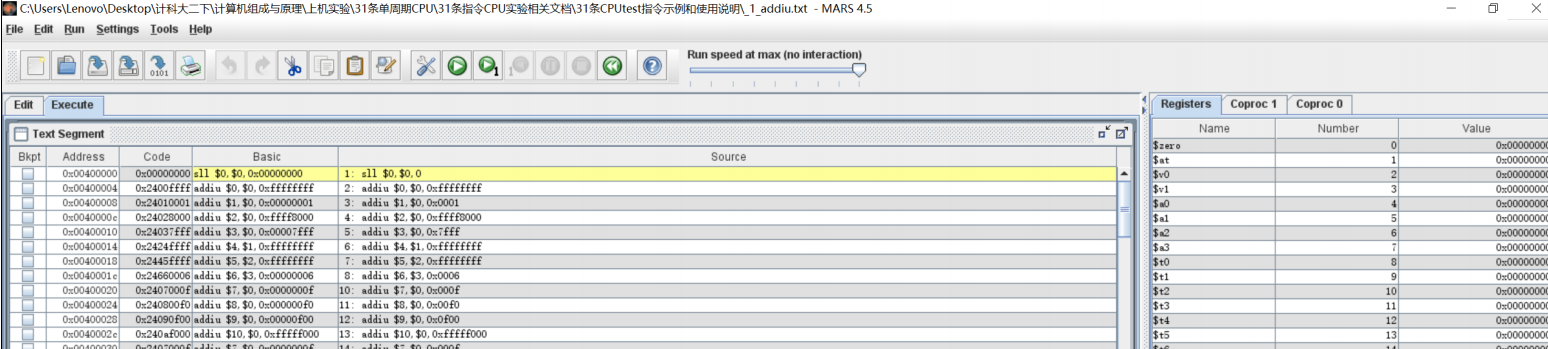

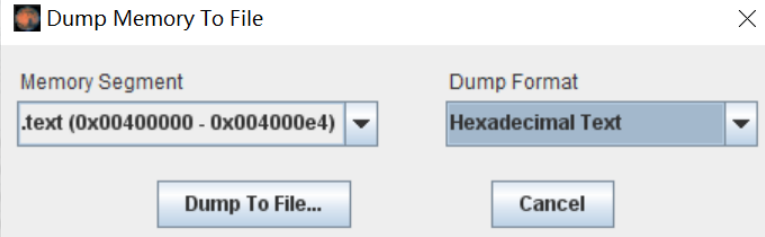

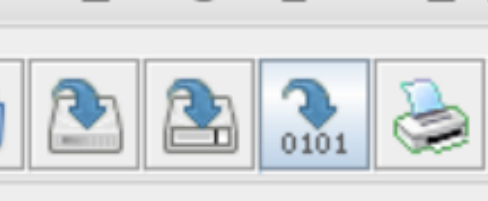

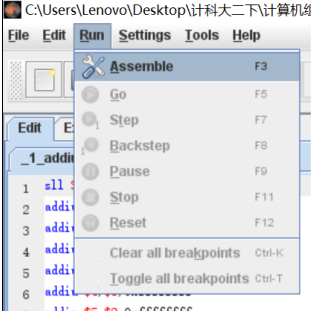

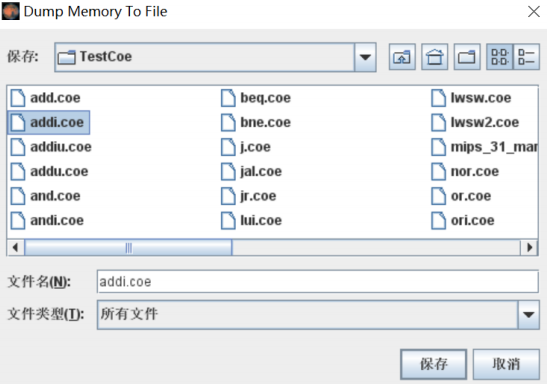

如何获取.coe文件： 在Mars中编写你想要测试的汇编代码，选择assemble指令进行编译
1 2 3 4 5 6 7 8 9 # 示例：addi指令的测试代码
至此，我们的CPU就能正常运行代码啦，不过需要运行的代码都需要通过以上这种形式转为coe文件导入IP核才能运行
